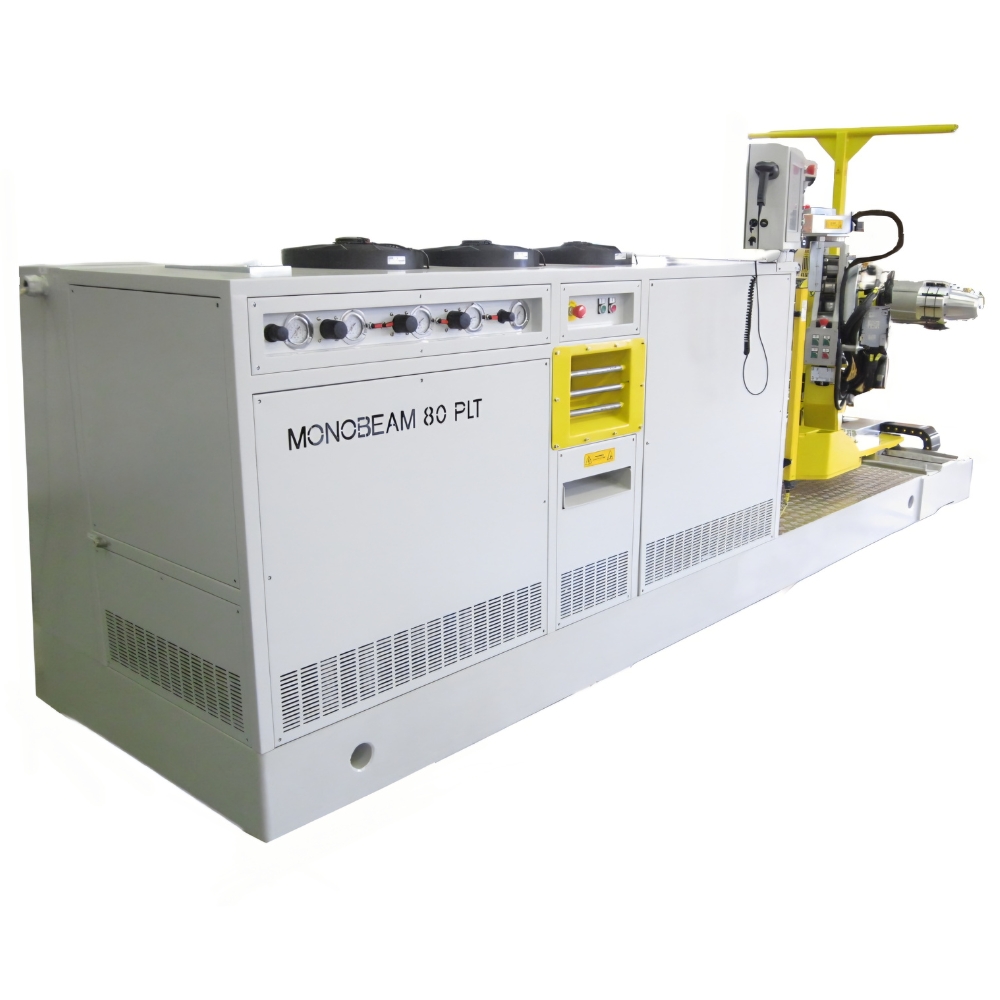

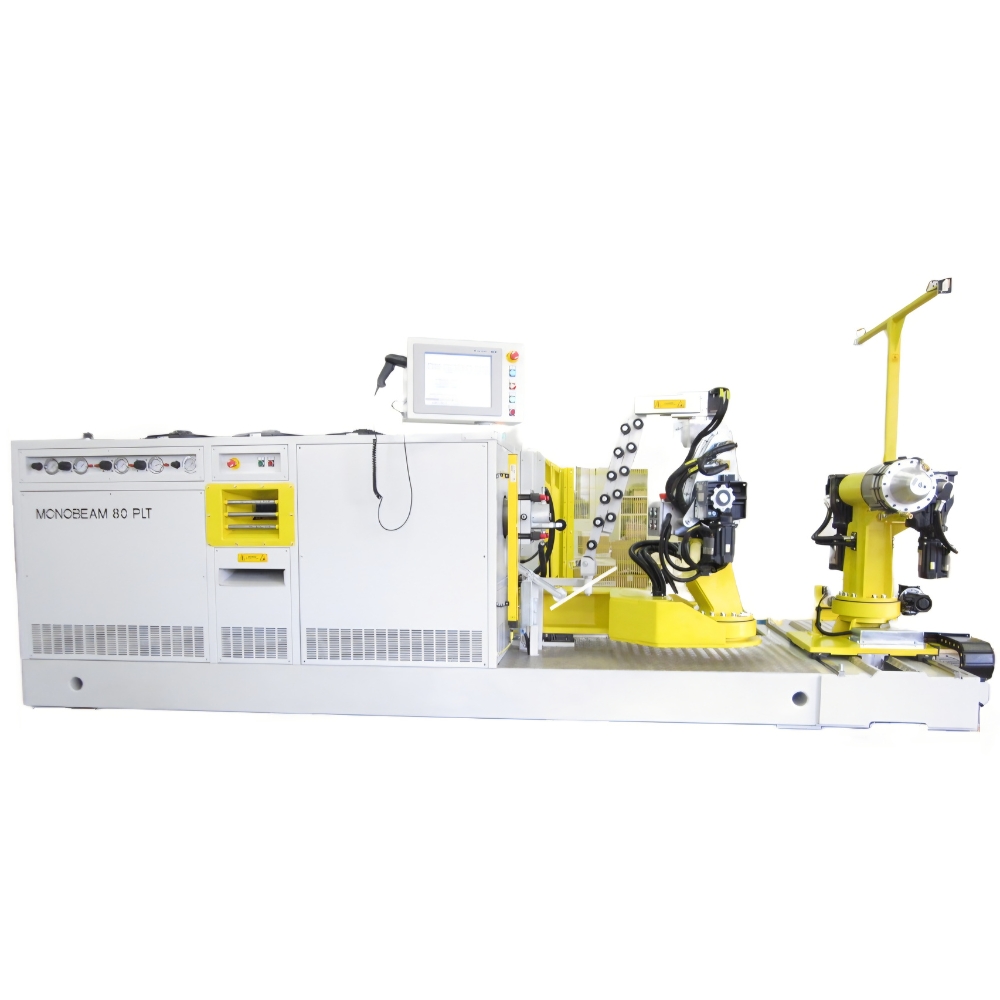

Pin Barrel Strip Winding Extruder Applicator

• Extruder 80mm; L/D ratio: 16/1
• Electric motor 55kw 400-480v 50/60Hz – extruder screw max speed of 72 rpmS

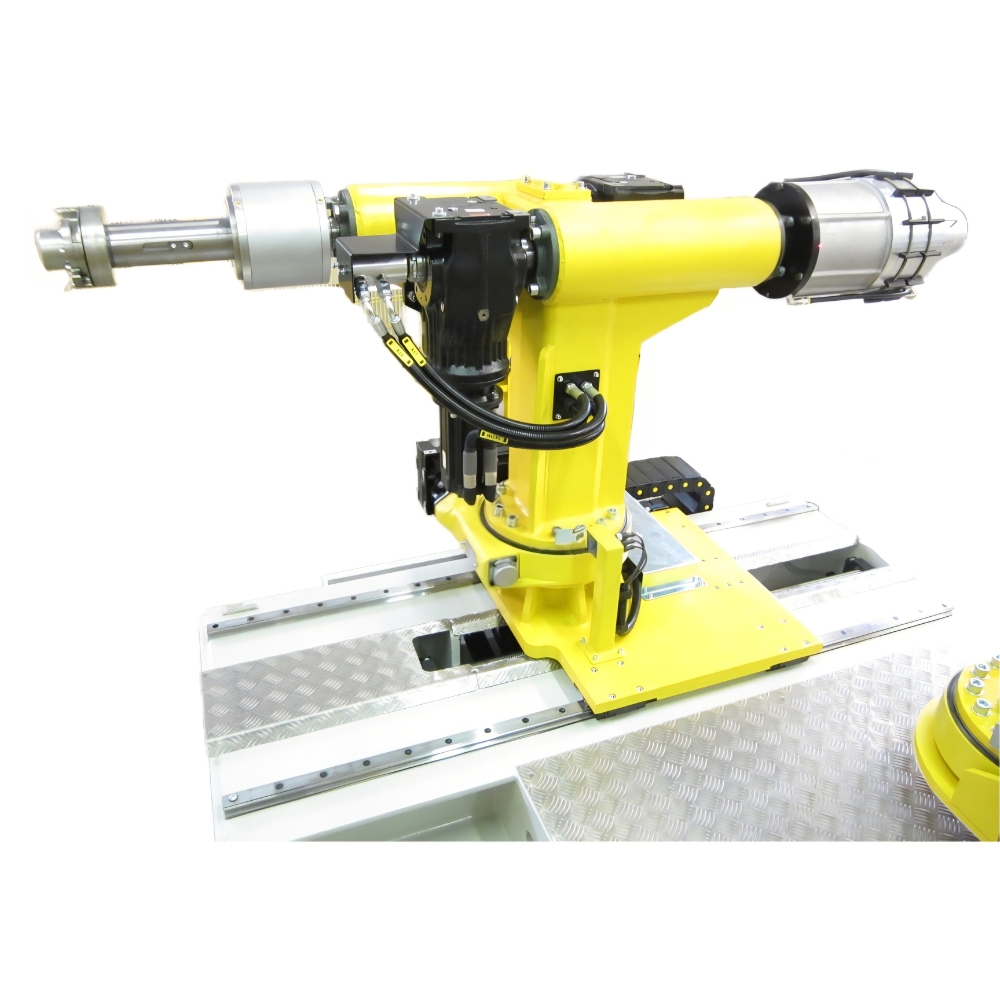

• Double turntable shafts. One shaft with two expandable hubs suitable for rims 13” to 22.5” or one shaft with an expandable hub and the other with bead plates.
• PLC
• Extruder motor drive, motion drives and motor, made by Rockwell Automation
• Interface computer by ASEM
• Double high accuracy laser type DSE for tire diameter reading and built tire measuring
• Three zone temperature control
• Automatic ribbon starting and breaking away from tire when cycle is finished
• UL 508A electrical panel
