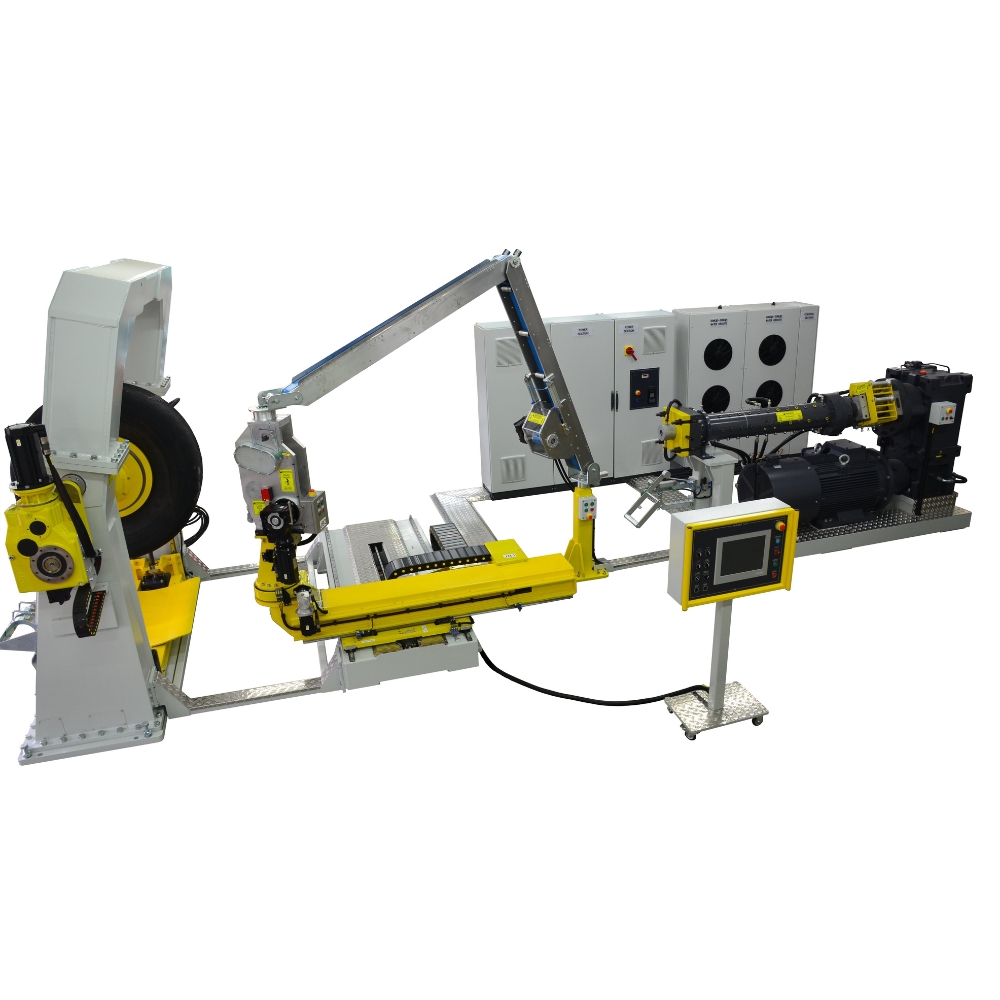

Strip Winding Applicator for Small OTR Tires

• Extruder 127mm; L/D ratio: 15
• Electric motor 132kw 480v 60Hz with electric ventilation fan
• Extruder motor a.c. drive made by Allen Bradley

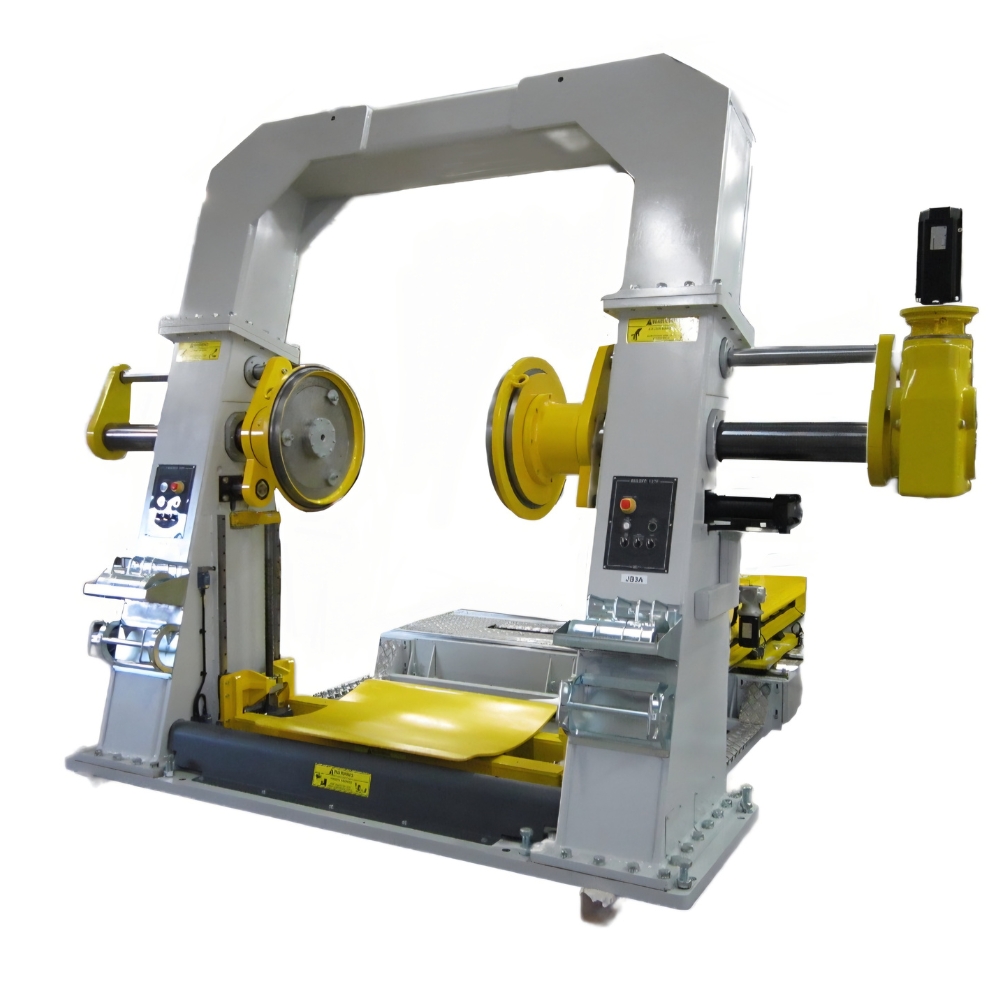

• H Frame with bead plates
• Min/Max tire diameter: 700/2200 mm
• Max tire width: 900 mm
• Max tire weight: 2500 kg
• Bead plate pairs (24-25”), 29”, 33”, 35”
• Hydraulic tire lift

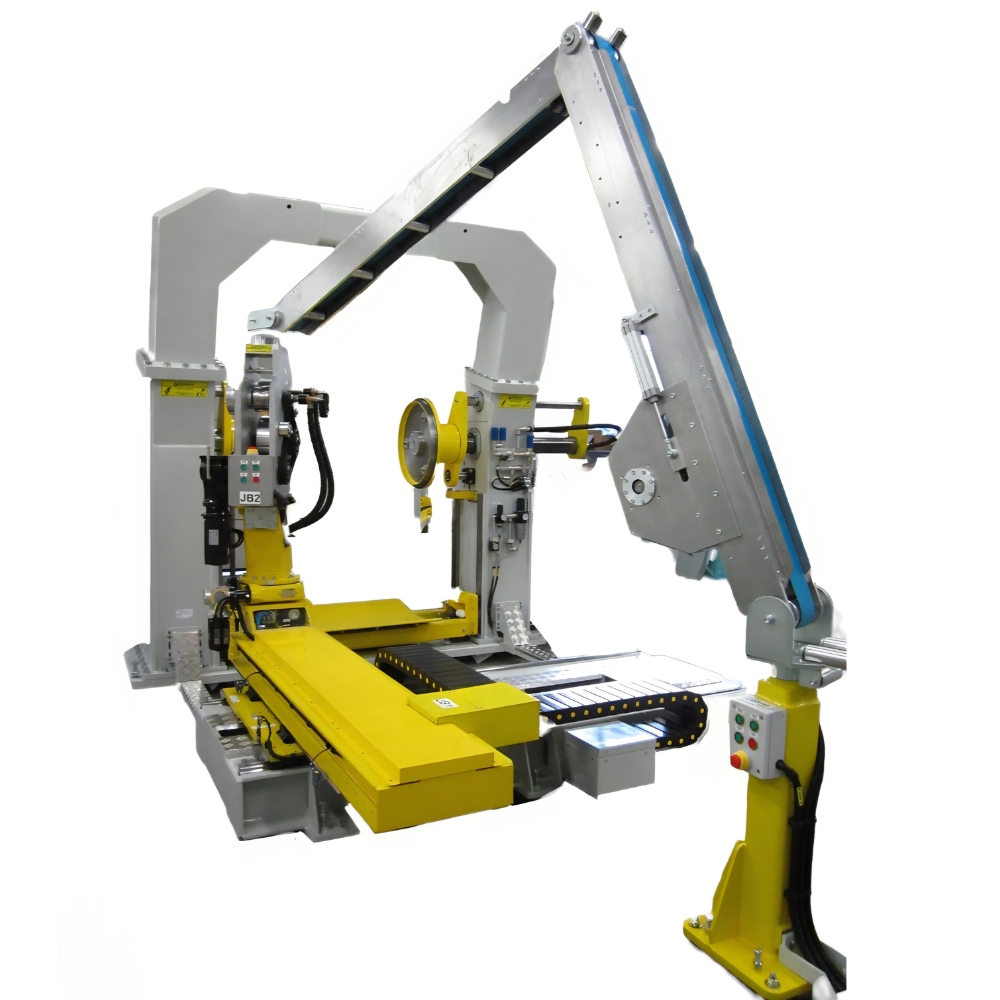

• Telescopic conveyor belt between extruder and calendar
• Calendar making a strip with dimensions 30 x 2.9 mm
• Calendar, X-Y-Z axis, rope stretching, conveyor belt and drum brushless motors and Kinetix 5700 drives made by Allen Bradley
• TCU #4 unit for control of four zones water temperature, inclusive of electrical heater, water/air exchanger, pump, RTD sensor
• Moveable control console inclusive of 15” touchscreen interface computer made by ASEM with HMI runtime license
• PLC and electromechanical equipment made by Allen Bradley
• Infrared laser sensor for profile reading

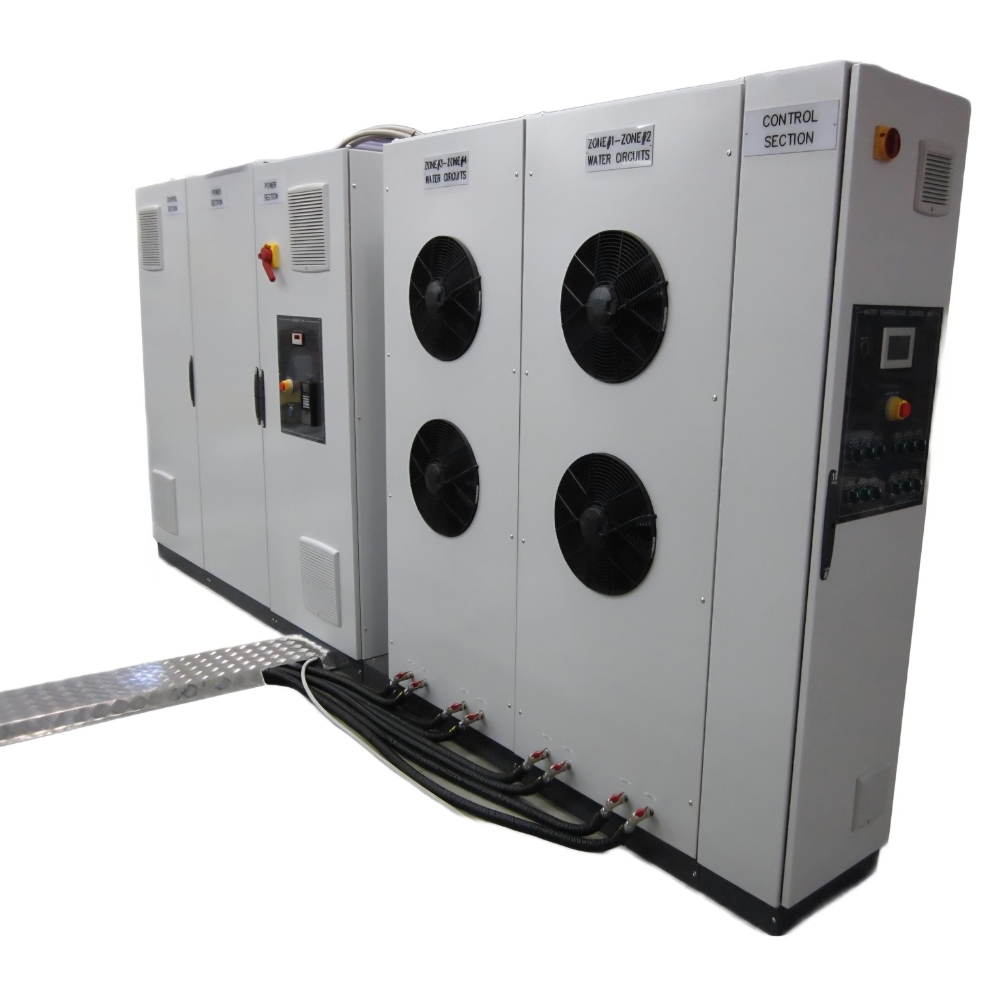

• UL 508A electrical panel
