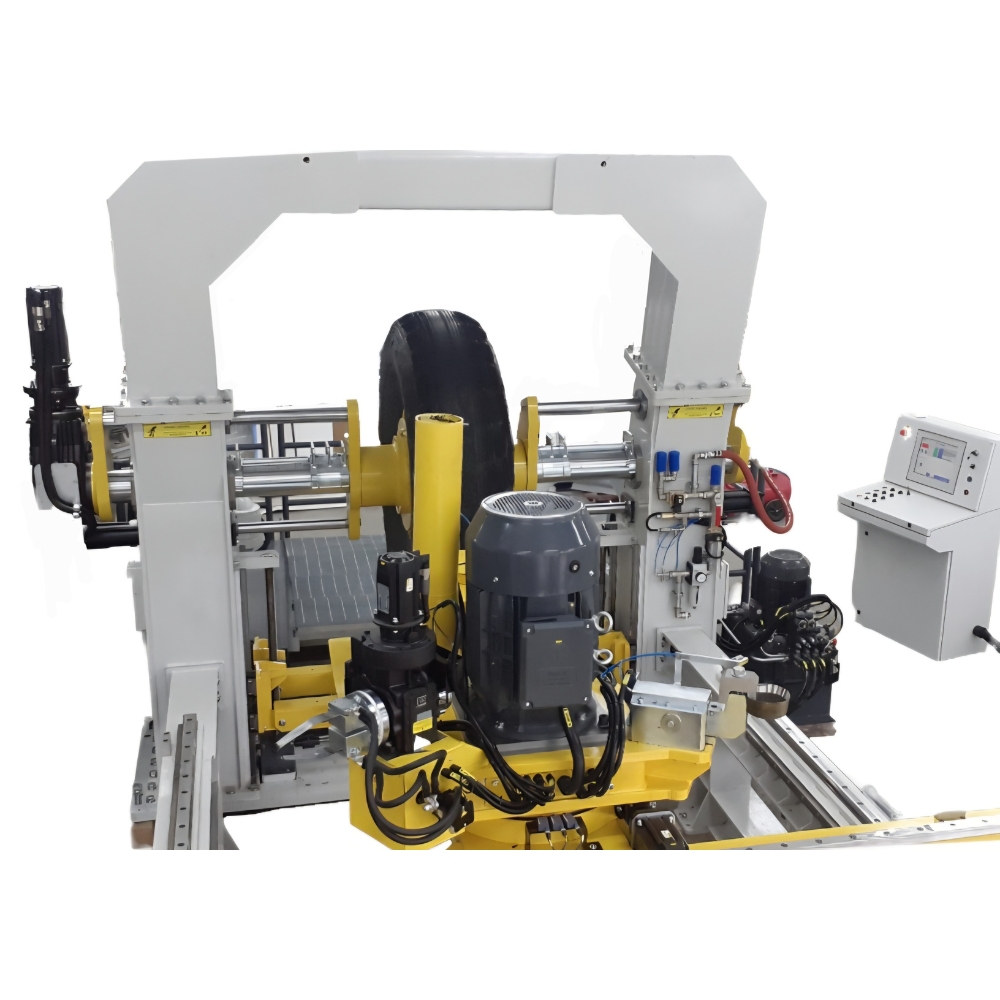

Five Axes Peeling – Buffing – Grooving Machine for Small OTR Tires

• Buffer electric motor 30kw 400v 50Hz/480v 60Hz
• Manual buffer motor (optional with two manual sidewall buffers) 11kw 400v 50Hz/480v 60Hz
• Buffer tool rotation speed: max 3000 rpm
• Min / Max tire diameter: 700 / 2200 mm
• Max tire width: 1000 mm
• Max tire weight: 1000 kg
• Changeable plates kit for tires mounting (24/25-29-33-35)
• Laser sensor for tire profile and diameter reading
• Hydraulic tire lifter
• UL 508A electrical panel
